Air Care Heating & Cooling
    Trane furnace and air handler in a Sunnyvale, CA 94086 single-family home after a maintenance wiring repair
    MaintenanceRepairs

    Burned AC Wire Found During Maintenance in Sunnyvale, CA 94086

    Sunnyvale

    Project Overview

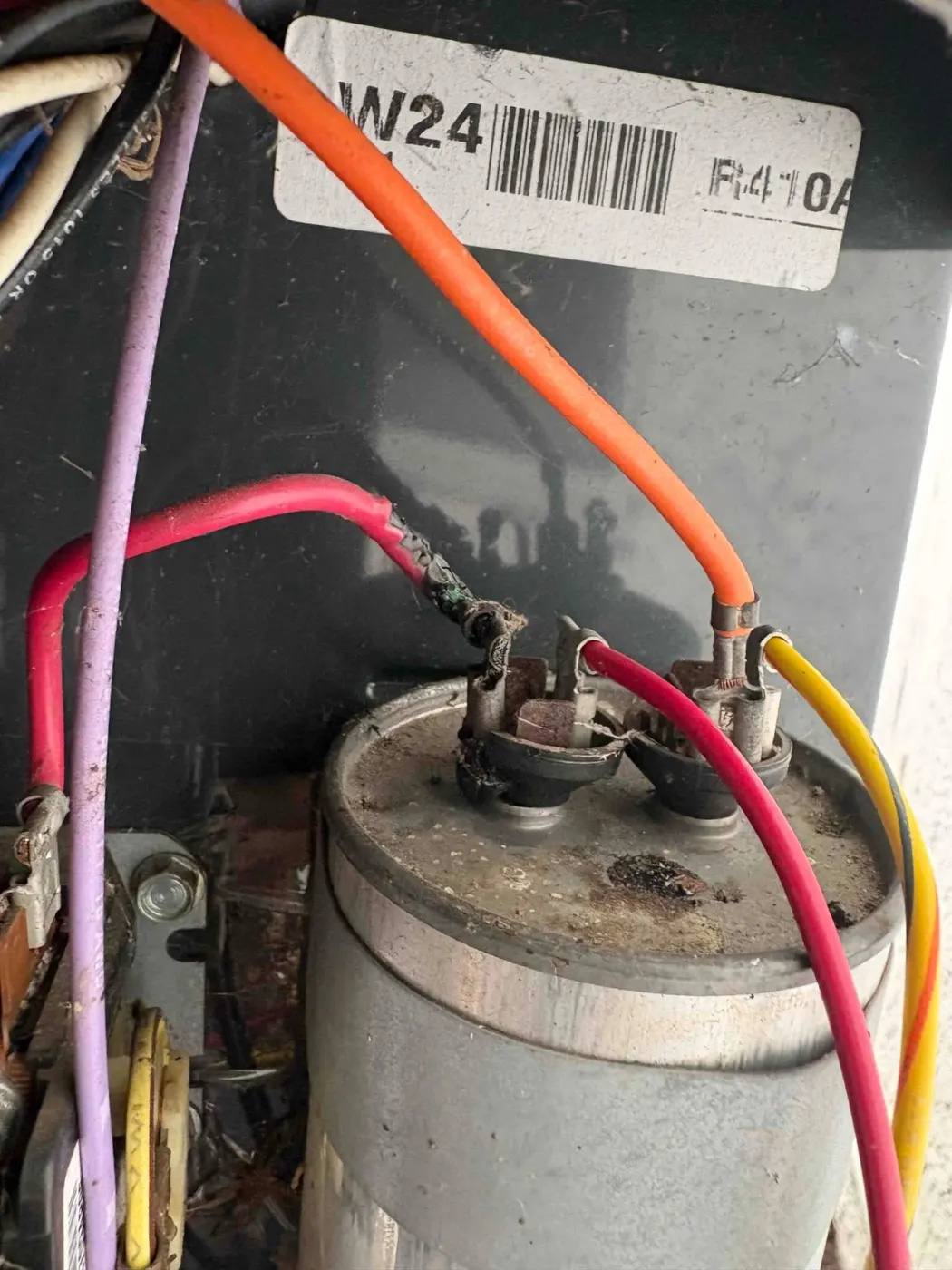

    Air Care Heating & Cooling completed a routine preventive maintenance visit for a Silver Club member in Sunnyvale, CA 94086. The single-family home has a Trane furnace and air conditioning system, and the homeowner had no indication that anything was wrong because the system was still operating. During the maintenance inspection, technician Fernando found a burned high-voltage wire leading to the dual capacitor. Fernando cut the wire back to a section showing no additional visible damage, ohmed out the wire and found no resistance, and replaced the connector. The wiring issue was addressed while it was still a minor repair rather than being left to potentially develop into a larger equipment problem.

    Air Care provides HVAC maintenance in Sunnyvale, CA and throughout the Bay Area.

    Project Details

    Location

    Residential · Sunnyvale, CA 94086

    Service Performed

    Preventive HVAC Maintenance & Electrical Wiring Repair

    Equipment Serviced

    Trane furnace and air conditioning system

    Technician

    Fernando

    Customer Challenge

    The homeowner did not know there was an electrical problem because the HVAC system was still functioning normally from their perspective. During the routine maintenance inspection, Fernando found that a high-voltage wire leading to the dual capacitor had burned. Because the system had not yet stopped operating, this was the type of developing problem that could easily have gone unnoticed without an inspection.

    Our Recommendation

    Because the high-voltage wire was visibly burned, Air Care addressed the damaged portion of the wiring rather than leaving the deteriorated connection in service. Fernando cut the wire back until he reached a section that showed no additional visible damage, then ohmed out the remaining wire and found no resistance. The damaged connector was replaced.

    Our Solution

    Fernando cut back the burned high-voltage wire to a section with no additional visible damage. He ohmed out the wire and found no resistance, then installed a replacement connector. The repair addressed the damaged wiring while the HVAC system was still operating.

    Outcome

    The burned high-voltage wiring issue was found during routine preventive maintenance while the Trane HVAC system was still functioning. Fernando was able to remove the damaged portion of the wire, verify the remaining wire, and replace the connector as a minor repair. This is a real example of how preventive maintenance can identify a developing problem before the homeowner experiences an obvious equipment failure.

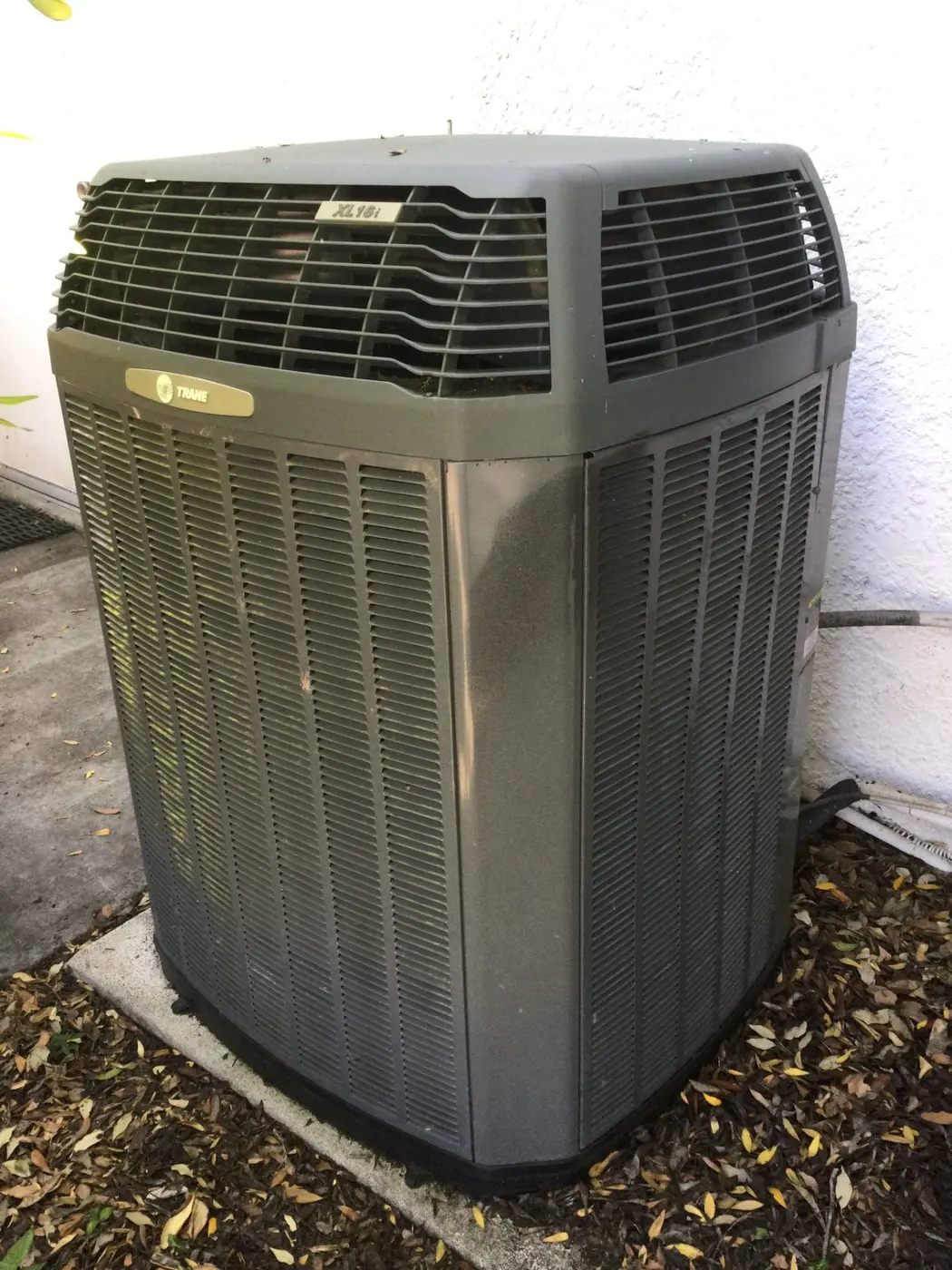

    The AC portion of the Trane system was inspected during the visit; Air Care also provides air conditioning service & repair for cooling problems found during or between maintenance visits.

    Service Performed

    1. 1Arrived for the Silver Club member's routine maintenance visit
    2. 2Inspected the Trane furnace and air conditioning system
    3. 3Found a burned high-voltage wire leading to the dual capacitor
    4. 4Confirmed the system was still operating despite the damaged wire
    5. 5Cut the wire back until reaching a section showing no additional visible damage
    6. 6Ohmed out the remaining wire and found no resistance
    7. 7Replaced the damaged wire connector
    8. 8Completed the minor electrical repair
    9. 9Service performed by Fernando

    Equipment Installed

    • Replacement wire connector

    Project Highlights

    • Silver Club Member
    • Sunnyvale, CA 94086
    • Single-family home
    • Trane furnace and AC system
    • Routine preventive maintenance
    • System was still functioning
    • Homeowner had no indication of the developing electrical problem
    • Burned high-voltage wire found during inspection
    • Damaged wire led to the dual capacitor
    • Wire cut back to undamaged section
    • Remaining wire ohmed out with no resistance
    • Connector replaced
    • Minor repair completed
    • Service performed by Fernando

    Customer Benefits

    • Developing electrical issue discovered during preventive maintenance
    • Problem identified while the HVAC system was still functioning
    • Burned section of high-voltage wire addressed
    • Remaining wire checked after damaged portion was removed
    • Damaged connector replaced
    • Minor repair completed before the issue had an opportunity to become a larger problem
    • Existing Trane HVAC equipment retained
    • Routine Silver Club maintenance provided an opportunity to identify an issue the homeowner did not know existed
